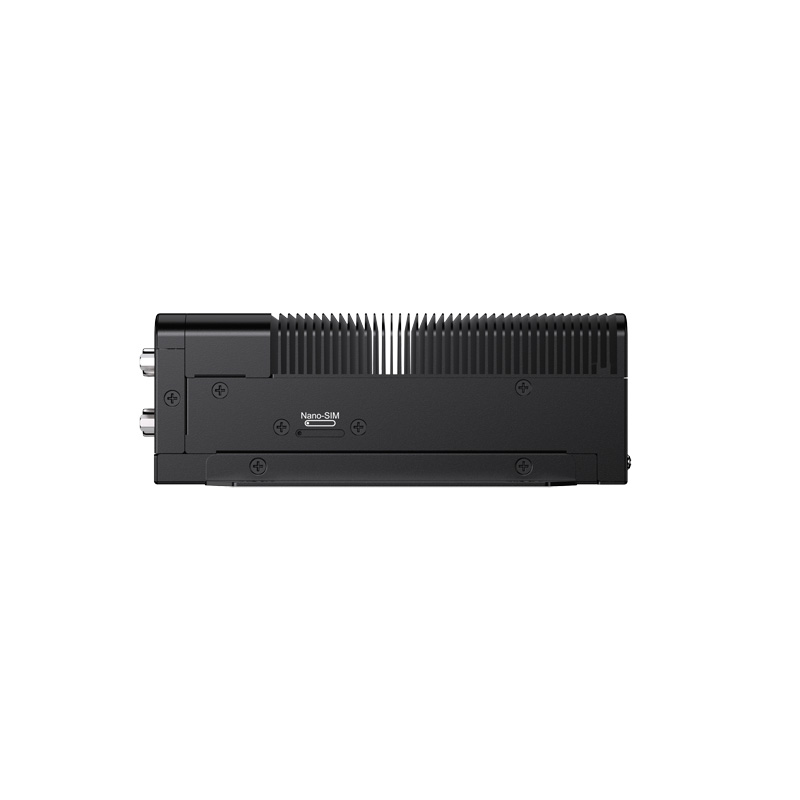

NBC-2414紧凑型工控机 支持 8/10/11/12代Intel Core-i3/i5/i7
● 支持 8/10/11/12代Intel® Core™ i3/i5/i7处理器
● 6x COM, 4x LAN, 4x USB, 1x VGA, 1x HDMI
● 2x CAN2.0 (选配), 16x 带隔离DIO(选配)
● 9 ~ 36VDC 电源输入
NBC-2414紧凑型工控机是一款可搭载8/10/11/12代Intel Core-i3/i5/i7高性能处理器的小型工控机，性能稳定可靠，可轻松应用各种应用程序。配备6x COM, 4x LAN, 4x USB, 1x VGA, 1x HDMI，2x CAN2.0 (选配), 16x 带隔离DIO(选配)等丰富接口，可满足用户各种应用扩展。整机采用紧凑型无风扇设计，以灵活的客制化方案，能在有限的尺寸内提供必要的接口功能和算力，为狭小安装空间应用提供最优解决方案。
▌规格参数
| 系统 | ||||
| CPU | Intel® Core™ i3-8145U/i5-8265U | Intel ® Core™ i3-10110U/i5-10210U/i7-10510U | Intel ® Core™ i3-1115G4/i5-1145G7/i7-1185G7 | Intel ® Core™ i3-1215U/i5-1235U/i7-1255U |
| CPU TDP | 15W | |||
| 内存 | 1x DDR4 2666 MHz SO-DIMM 最大支持 32GB | 1x DDR4 3200 MHz SO-DIMM 最大支持 32GB | ||
| 存储 | 1x mSATA | 1x M.2 2280 NVME | ||
| BIOS | AMI UEFI | |||
| Watchdog Timer | 软件可编程支持256级系统复位 | |||
| I/O 接口 | ||||
| USB | 2x USB 2.0, 2x USB 3.0 | |||
| 串口 | 6x COM (1x RS-232/422/485, 5x RS232) | 6x COM (1x RS-232/485, 1x RS-232/422/485, 4x RS232) | ||
| 网口 | 4x RJ45 GbE Intel® I210AT | |||
| 显示接口 | 1x HDMI, 1x VGA | |||
| SIM 卡槽 | 1x SIM 卡槽 (内置) | |||
| DIO | 16x 带隔离 DIO(选配) | |||
| CAN Bus | 2x CAN 2.0B(选配) | |||
| 天线孔 | 3x SMA 天线孔 | |||
| 扩展槽 | ||||
| Mini PCIe | 1x Full length Mini PCIe | N/A | ||
| M.2 | N/A | 1x M.2 2280 NVME, 1x M.2 2230 E-Key | ||
| 无线通讯 | ||||
| Wi-Fi | Mini PCle | M.2 2230 E-Key | ||
| Cellular | Mini PCIe expansion | |||
| Bluetooth | Mini PCle | M.2 2230 E-Key | ||
| GNSS | Mini PCIe | |||
| 音频 | ||||
| Audio | Mic in, line out | |||
| 电源规格 | ||||
| 按键 | Yes | |||
| 远程电源开/关 | 4-Pin 远程开关 & LED电源灯 | |||
| 电源输入 | 9-36VDC | |||
| 电源工作模式 | AT/ATX | |||
| 操作系统 | ||||
| Windows | Windows 10/11 | |||
| Linux | Ubuntu | |||
| 产品规格 | ||||
| 外观尺寸 (W x D x H) | 200 x 154 x 56 mm | |||
| 重量 | 2kg | |||
| 材质 | 铝合金 | |||
| 环境规格 | ||||
| 工作温度 | -10 to 60℃ | |||
| 储存温度 | -20 to 60℃ | |||
| 相对湿度 | 10% to 95% , 无冷凝 | |||
| 认证 | ||||
| EMC | CE, FCC Class A | |||
| NBC-2414-8145U | Core™ i3-8145U NBC with 6x COM, 4x LAN, 4x USB, 1x VGA, 1x HDMI, 9 to 36VDC |
|---|---|
| NBC-2414-8265U | Core™ i5-8265U NBC with 6x COM, 4x LAN, 4x USB, 1x VGA, 1x HDMI, 9 to 36VDC |
| NBC-2414-10110U | Core™ i3-10110U NBC with 6x COM, 4x LAN, 4x USB, 1x VGA, 1x HDMI, 9 to 36VDC |
| NBC-2414-10210U | Core™ i5-10210U NBC with 6x COM, 4x LAN, 4x USB, 1x VGA, 1x HDMI, 9 to 36VDC |
| NBC-2414-10510U | Core™ i7-10510U NBC with 6x COM, 4x LAN, 4x USB, 1x VGA, 1x HDMI, 9 to 36VDC |
| NBC-2414-1115G4 | Core™ i3-1115G4 NBC with 6x COM, 4x LAN, 4x USB, 1x VGA, 1x HDMI, 9 to 36VDC |
| NBC-2414-1145G7 | Core™ i5-1145G7 NBC with 6x COM, 4x LAN, 4x USB, 1x VGA, 1x HDMI, 9 to 36VDC |
| NBC-2414-1185G7 | Core™ i7-1185G7 NBC with 6x COM, 4x LAN, 4x USB, 1x VGA, 1x HDMI, 9 to 36VDC |
| NBC-2414-1215U | Core™ i3-1215U NBC with 6x COM, 4x LAN, 4x USB, 1x VGA, 1x HDMI, 9 to 36VDC |
| NBC-2414-1235U | Core™ i5-1235U NBC with 6x COM, 4x LAN, 4x USB, 1x VGA, 1x HDMI, 9 to 36VDC |
| NBC-2414-1255U | Core™ i7-1255U NBC with 6x COM, 4x LAN, 4x USB, 1x VGA, 1x HDMI, 9 to 36VDC |
